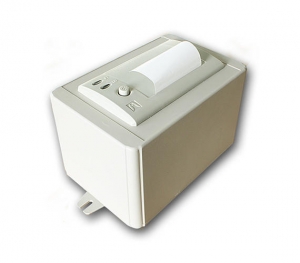

Wireless Telemetry Printer (T24-PR1)

Wireless Telemetry Printer (T24-PR1)
Hover over image to zoom

More images

Click to enlarge
Price: $811.25
Product ID : T24-PR1
Manufacturer: Mantracourt
Weight: 10.00 lbs
E-mail to a friend

Purchase

Description

This radio telemetry printer module will generate a user designed report which can contain values from up to 8 x T24 acquisition modules and optionally sum them. This module has proved ideal for generating receipts and reports from various wireless weighing applications.

Printing can be triggered by a button press or the arrival of specific data from an acquisition module or a handheld display module. The power supply requirements make this module ideal for in-vehicle mounting.

The licence free 2.4GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. ETSI, FCC and IC approvals.

The module is configured using free T24 Toolkit software which runs on a PC connected to a T24 base station.

Internal antenna offers up to 200m (650 ft) range in an open field site.

  • Radio Telemetry Thermal printer with 57mm (2.244”) paper width
  • Prints data from up to 8 acquisition modules or a handheld module
  • User definable printed report page
  • Surface mounting enclosure
  • Simple wireless configuration
  • Internal antenna delivers up to 200m (650 ft) range
  • Real time clock (RTC) option available



PDF'sSoftware

T24-PR1

Electrical

Min Typical Max Units
Power Supply Voltage 9 12 36 V
Power Supply Current
Active not Printing - 350 500 mA
During Printing
Input Voltage of 12V -3 5 8* A
Input Voltage of 18V -2 2.5 3.75* A
*Note these are peak currents of less than 4mS during printing of black areas
Environmental
Operating Temperature Range -10   +40 C
StorageTemperature -10   +60 C
Humidity 10   90 %RH

General Radio

Parameter Min Typical Max Units
Licence   Licence Exempt
Modulation Method   MS (QPSK)
Radio Type   Transceiver (2 way)
Data Type   250   K bits/sec
Radio Frequency 2.4000   2.4835 GHz
Power   1   mw
Range     200 (650)  Metres (feet) *
Channels (DSSS)   16

  *Maximum range achieved in open field site at height of 3 metres (9.8 feet) above ground.
