Wireless Telemetry Analogue Output Module (T24-AO1)

Hover over image to zoom

Price: $562.00

Product ID : T24-AO1

Manufacturer: Mantracourt

Weight: 1.00 lbs

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

Purchase

The selected item is out of stock, please select a different item or combination

Description

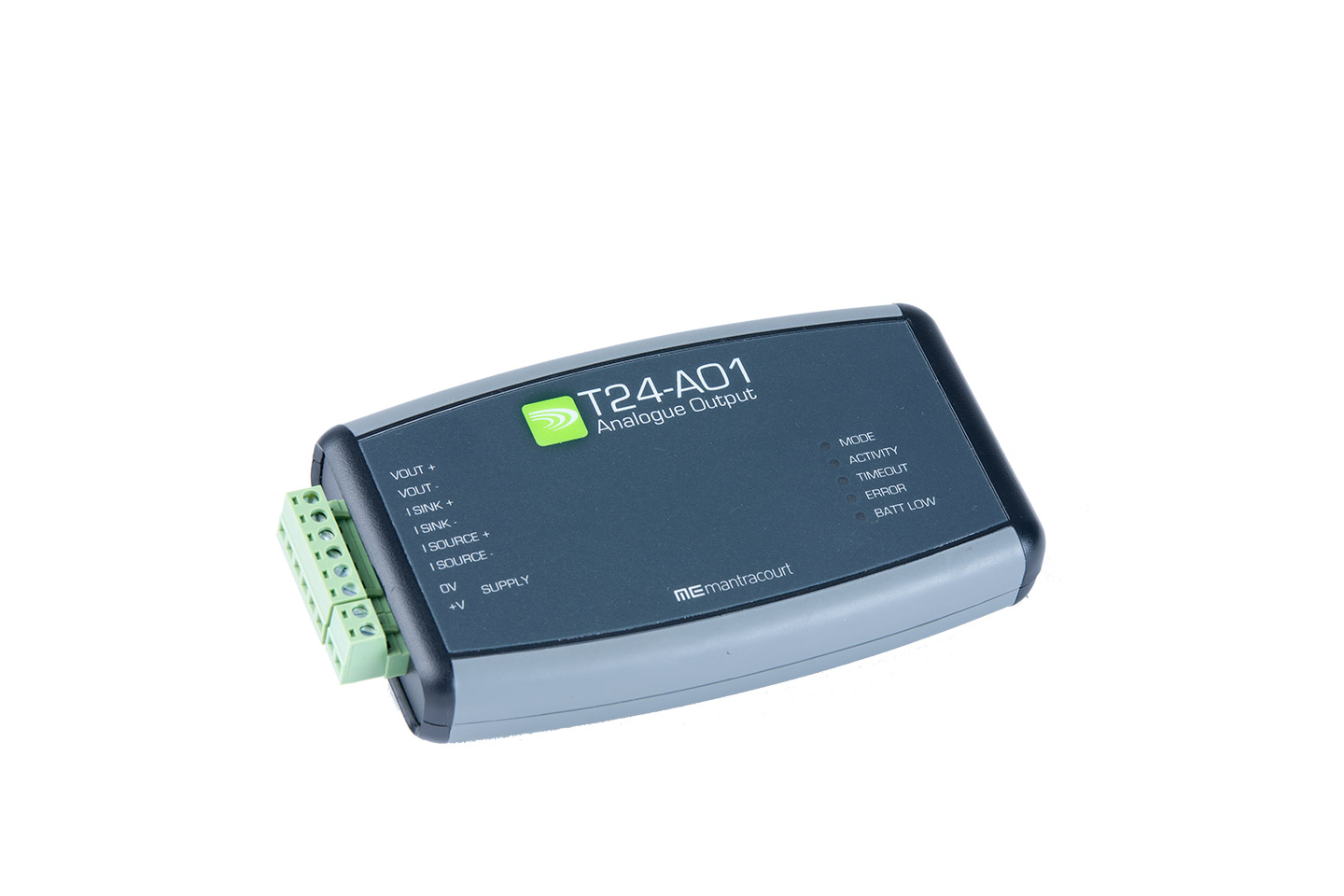

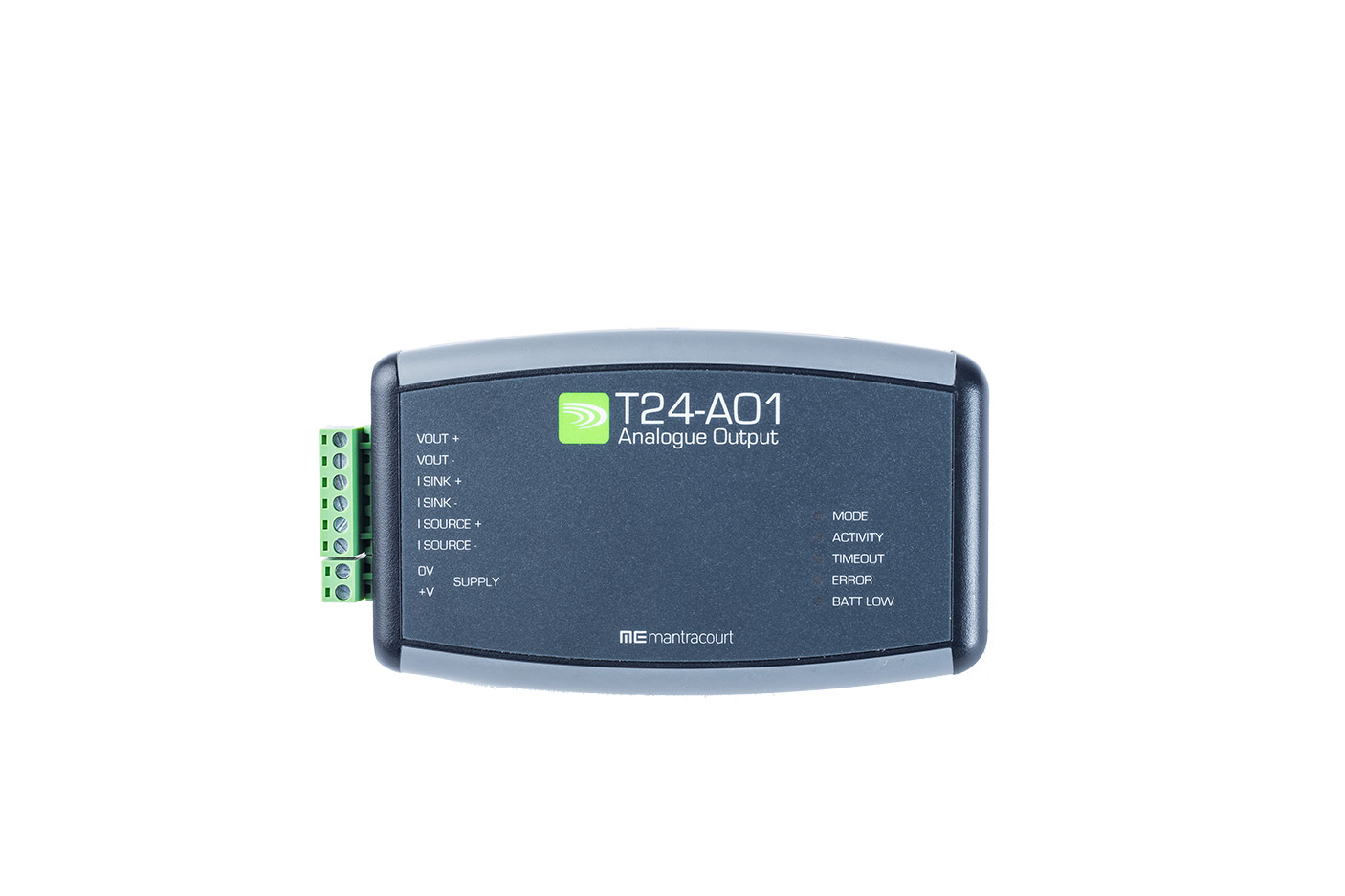

The analogue output modules provide a configurable analog output for a single T24 radio telemetry acquisition module. The output can be selected from the pre-calibrated voltage and current ranges of 0-10Volts, ±10Volts, 0-5Volts, ±5Volts, 0-20mA and 4-20mA (All current outputs both sink and source).

LED indictors provide status indication of the condition of the radio link, remote battery life and remote sensor status.

These modules are configured and scaled using free T24 Toolkit software which runs on a PC connected to a T24 base station.

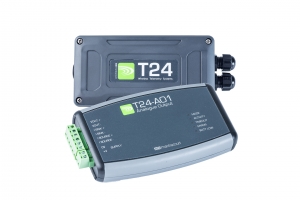

The industrial version is housed in an IP65 NEMA4 sealed enclosure and offers a digital input allows for zeroing of the incoming data value. This version also offers extended range over the desktop version.

The licence free 2.4GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals.

Provides an analogue output from a radio telemetry T24 acquisition module
Desktop and bulkhead mounting enclosure options provide simple 2 part screw terminal connections
Configurable analog outputs of 0-10V 4-20mA, 0-20mA, ±10V, ±5V
Update rate of up to 2000 per second
Simple wireless configuration and calibration
Desktop option up to 20m (65 ft) range. Industrial bulkhead mounting up to 200m (650 ft) range

General Radio

Parameter	Min	Typical	Max	Units
License		License Exempt
Modulation Method		MS (QPSK)
Radio Type		Transceiver (2 way)
Data Type		250		K bits/sec
Radio Frequency	2.4000			GHz
Power		1		mw
Range RAD24i (integrated antenna)			60 (200)	Metres (feet) *
Range RAD24e (external antenna)			100 (325)	Metres (feet) *
Channels (DSSS)		16

* Maximum range archived in open field site with T24-SA at height of 3 metres (9.8425 feet) above ground and T24-AO1 held at chest height pointing towards the T24-SA.

T24-AO1

Parameter	Min	Typical	Max	Units	Notes
External Supply Voltage Range	9	12	36	Volts
Operating Current	-	85	150	mA
Operating Temperature Range	-40	-	85	Deg C
Storage Temperature Range	-40	-	85	Deg C
Reverse Polarity Protection	-	-	-36	Volts	Max supply level
Digital Output Drive Voltage			30	Volts
Digital Output Drive Current			20	mA
Digital Input Load Impedance			100	Ohms
Voltage Output
Resolution	-	16		Bits
Output Gain Stability	-	0.008	0.015	±%FS/°C
Output Zero Stability (1hr)	-	0.006	0.015	±%FS/°C
Long Term Stability (10k hrs)	-	0.003	0.01	±% FS
Residule Ripple	-	40		mV p-p
Linearity	500			Ohms
Bandwidth (-3dB)		TBD		Hz
Current Output
Resolution	-	16		Bits
4-20mA Output Gain Stability	-	0.0060	0.0120	±%FS/°C
4-20mA Output Zero Stability	-	0.005	0.0100	±%FS/°C
Short Term Stability (1hr)	-	0.006	0.018	±%FS
Long term Stability (10k hrs)	-	0.06	0.2	±%FS
Residule Ripple		0.032		mA p-p
Settling Time to ±0.5uA (thermal effects)	-	5	-	secs
Maximum Load Impedance			500	Ohms
Linearity	-	0.01	0.02	±%FS
Bandwidth (-3dB)		TBA		Hz
