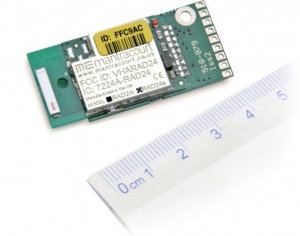

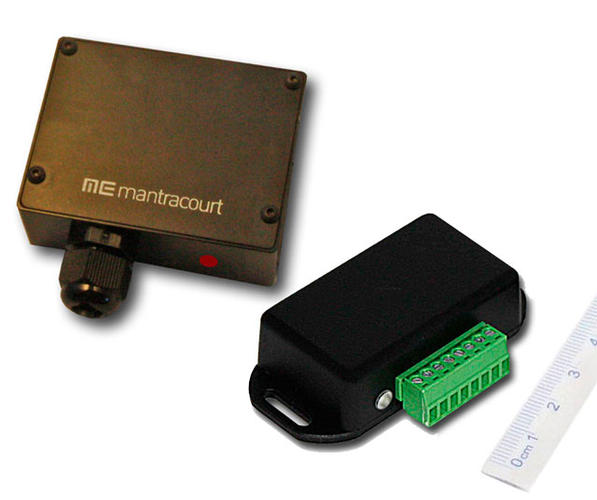

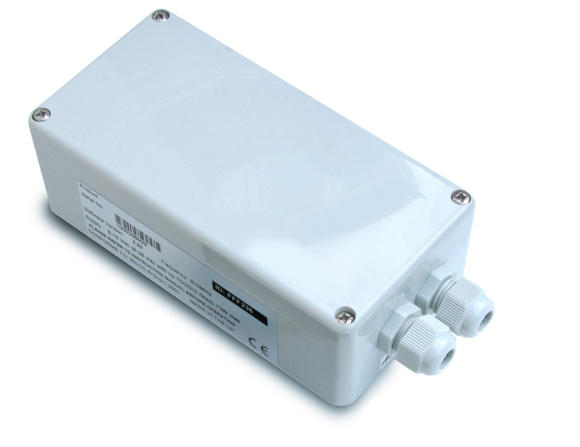

•Miniature acquisition module for wireless Pt100 type 385 sensors •Creates wireless temperature link •Exceptionally low power for long battery life •Transmits on license free 2.4GHz •Remote ‘on’ and ‘off’ to preserve battery life •Up to 200m range •Simple configuration and calibration via PC using Free Telemetry Toolkit Software •Can be calibrated to provide any standard engineering unit output for a given input •1 year manufacturers warranty •3 enclosures are available (mini, for integration and standard) The T24-TA temperature acquisition module is a high performance device designed for OEM integration for the collection and processing of temperature measurements. The wireless module requires an external platinum temperature sensor (Pt100 type 385). Measuring temperature and periodically transmitting, between transmissions the device can be placed in a power saving sleep mode to conserve batteries. Miniature in size, the wireless temperature PCB transmits on license-free 2.4Ghz, avoiding local radio interference to ensure data integrity and security. Data is provided in real time at variable speeds with a direct line of sight range of up to 200 meters. Integral antenna options offers up to 100m (325ft) range (T24-TAi) and external antenna options offering up to 200m (650ft) range in an open field. This device is also available in a selection of IP rated enclosures to provide housing and powering.
)
)
