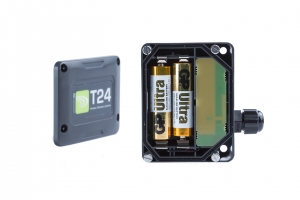

T24-ACMi Wireless Telemetry Acquisition Enclosure

T24-ACMi Wireless Telemetry Acquisition Enclosure
Hover over image to zoom

More images

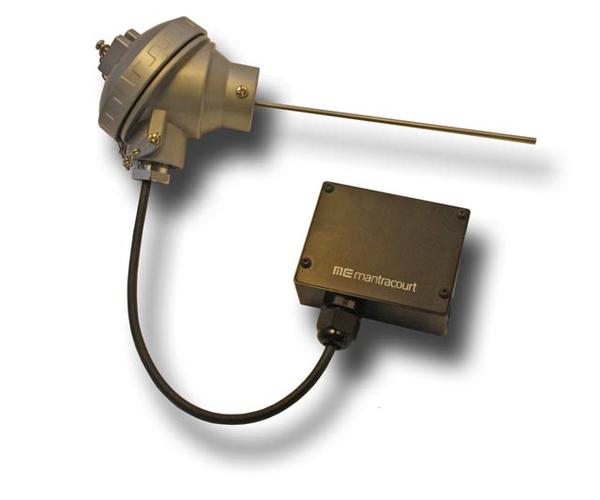

  • With Temperature Probe

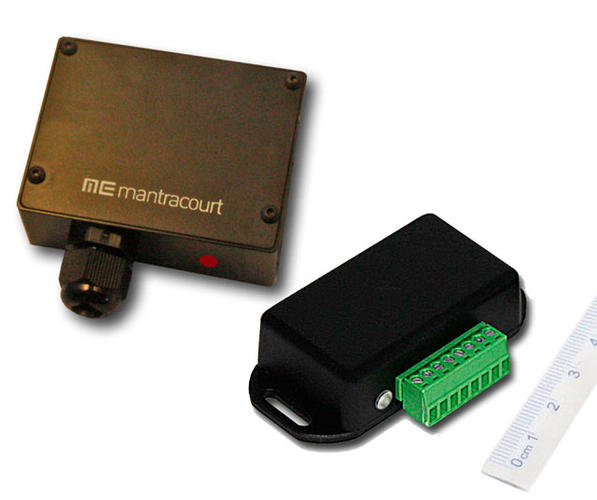

  • Older Case Style
  • With Strain Block

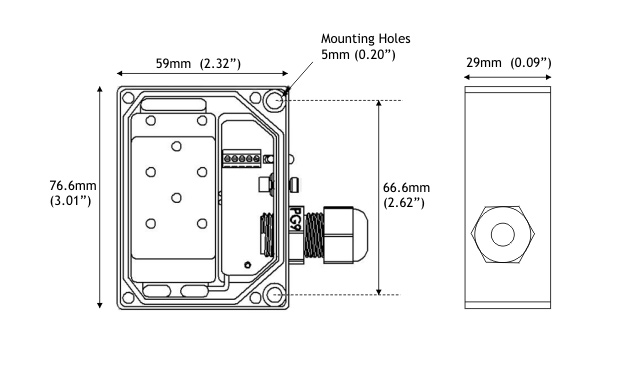

  • Size
Click to enlarge
Price: $540.00
Product ID : T24-ACMi
Manufacturer: Mantracourt
Weight: 1.20 lbs
E-mail to a friend

Purchase

T24-ACMi-SA: Strain Acquisition
T24-ACMi-SAf: Strain Acquisition (+$60.00)
T24-ACMi-IA: Current Acquisition
T24-ACMi-VA: Voltage Acquisition
T24-ACMi-TA: Temperature Acquisition
T24-ACMi-PA: Pulse Acquisition
T24-ACMi-RA: Potentiometer Acquisition
Min/Max Order: 1 / 100

Description

This Mantracourt wireless module is a miniature rugged enclosure for any of the T24 acquisition modules to provide protective water-proofing and powering. The unit has fitting for 2 x Alkaline AA batteries (not included) and simple screw field terminals for easy wiring to a variety of sensors.

The T24-ACMi is supplied with an IP68 cable gland although options are available for a cable connector or blanking plate if required for OEM applications.

The standard internal antenna supplied offers up to 200m (650 ft) range in an open field site.

The unit is supplied with the Acquisition Module. Upon ordering,

  • Miniature sealed enclosure for any of the T24 Acquisition modules
  • Provides complete battery powered telemetry unit
  • Includes fitting for 2 x AA Alkaline batteries
  • Easy connectivity with screw terminals for connection to a variety of sensors
  • Internal antenna provides up to 200m (650 ft) range
  • Water-proofed to IP65 NEMA4 enclosure



T24-ACMi

ElectricalMinTypicalMaxUnits
Battery Supply Voltage 2.1 3.0 3.6 V DC
Environmental
IP Rating IP65
Operating Temperature Range -40 +80* C
Storage temperature -40 +85 C
Humidity 0 95 %RH

General Radio

ParameterMinTypicalMaxUnits
Licence Licence Exempt
Modulation Method MS (QPSK)
Radio Type Transceiver (2 way)
Data Type 250 K bits/sec
Radio Frequency 2.4000 2.4835 GHz
Power 1 mw
Integral Antenna 100 (325) Metres (feet) **
External Antenna 200 (650) Metres (feet) **
Channels (DSSS) 16

*Check operating temperature of batteries intended for use.

**Maximum range acgieved in open field site at height of 3 metres (9.8 feet) above ground.
