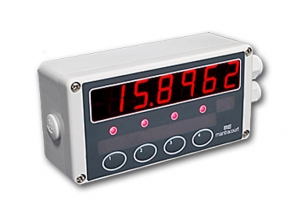

Serial ASCII Display Module (SERIALDIS)

Hover over image to zoom

More images

Click to enlarge

Price: $400.00

Product ID : SERIALDIS

Manufacturer: Mantracourt

Weight: 1.25 lbs

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

Purchase

The selected item is out of stock, please select a different item or combination

Description

This display module accepts serial ASCII data and puts this data onto the LED display.
All numeric data can be displayed but also a limited set of alpha characters so simple warnings and messages can be shown.

By sending binary data the device can be addressed for multidrop operation and also the LEDs on the front panel can be controlled.

This display can be used in conjunction with Mantracourt DSC, DCell and T24-SO modules.

6 digit 7 segment LED 20mm display
RS232 or RS485 serial ASCII input
Waterproofed to IP65 NEMA 4

Supply Voltage
Nominal Voltage	8 to 18V DC
Current Consumption
Max	200mA
Communications
R3232 and RS485	8 data bits, 1 stop bit, no parity
Environmental
Storage temperature	-20 to +70°C
Operating temperature	-10 to 50°C
Relative humidity	95% maximum non condensing
CE Environmantal Approvals	European EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC
