TM900-Power Converter

Hover over image to zoom

Price: $358.75

Product ID : TM900

Manufacturer: Provibtech

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

Purchase

The selected item is out of stock, please select a different item or combination

Description

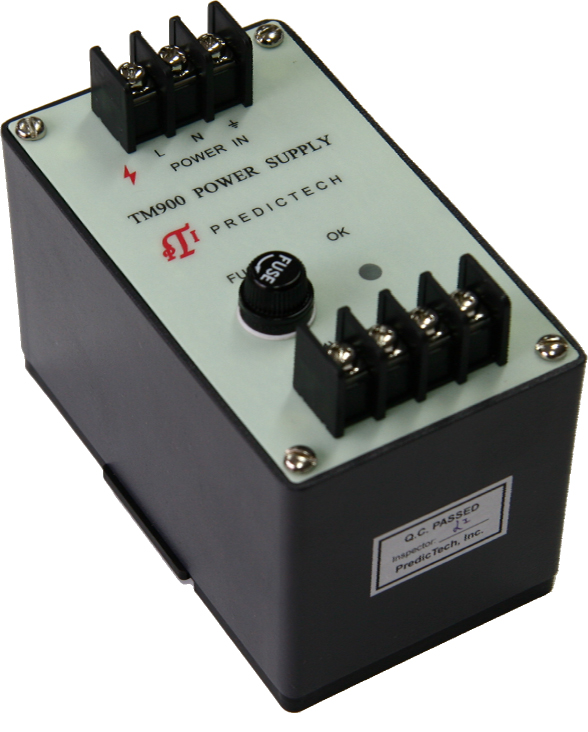

The TM900 power converter is designed for the DTM
series transmitter-monitor and the TR 3-wire transmitter.
Each TM900 supports up to five DTM’s and eight TR
transmitters. The output of the power converter is
isolated from its input. Additionally, the output is
short-circuit protected and the input is ESD and fuse
protected.

Data Sheet

Specifications
Electrical
AC Power Input:
	90-250VAC@200mA
Power Output:
	Voltage: 24VDC±5%
Current:
	800mA
Isolation:
	1000VAC
Fuse:
	2.0A, 250VAC
Capacity:
	Each TM900 can power up to 5 DTM’s
Physical
Height: 75mm (2.95”)
Weight: 1.0kg (2.0 lbs)
Environmental
Temperature:
Operation:
	-40oC to +75oC
Storage:
	-50oC to +100oC
Humidity:
	90% non-condensing
Certifications:
	CE certified with EMI compliance
	CSA Div. 2; ATEX Zone 2 (pending)
