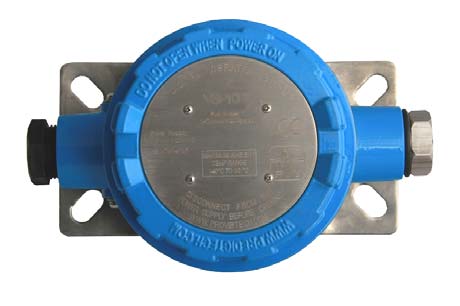

VS102 Electronic Vibration Switch

Hover over image to zoom

More images

Click to enlarge

Price: $645.00

Product ID : VS102

Manufacturer: Provibtech

Weight: 4.00 lbs

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

Purchase

Alarms

Conduit Entries

Mounting Plate or Mounting Stud

Power Supply

Hazardous Area Approvals

4-20mA Outputs

Full Scale

Ferrite Chokes

Quantity

The selected item is out of stock, please select a different item or combination

Description

The VS102 Electronic Vibration Switch is designed to be the
cost effective solution for vibration switch applications. The
VS102’s unique and rugged design is suitable for harsh
environments and hazardous areas. It has a universal
mounting feature, relays or triacs, and a 4-20mA output.

Data Sheet

Specifications:
Frequency Range: 2 to 1000 Hz
Alarms: Dual alarms
Dry-contact relay: 5A 230VAC/115VAC or 5A 30VDC
Triac: 5A 230VAC. Optically Isolated, Standard NC
Temperature Limit: -40℃ to +85℃ (-40℉ to +185℉)
Power Supply:
95 - 250VAC@100mA, 50-60Hz, or
22 - 30VDC @ 200mA
Enclosure: Cast Aluminum (copper free)
Coating: Standard plastic coating for all cased aluminum parts outside. Mounting plate, mounting stud and local reset are 304 stainless steel.
Environmental Rating: NEMA 4X, IP65

Physical

Temperature:
Operation: -40℃ to +85℃ (-40℉ to +185℉)
Storage: -50℃ to +120℃ (-58℉ to +248℉)

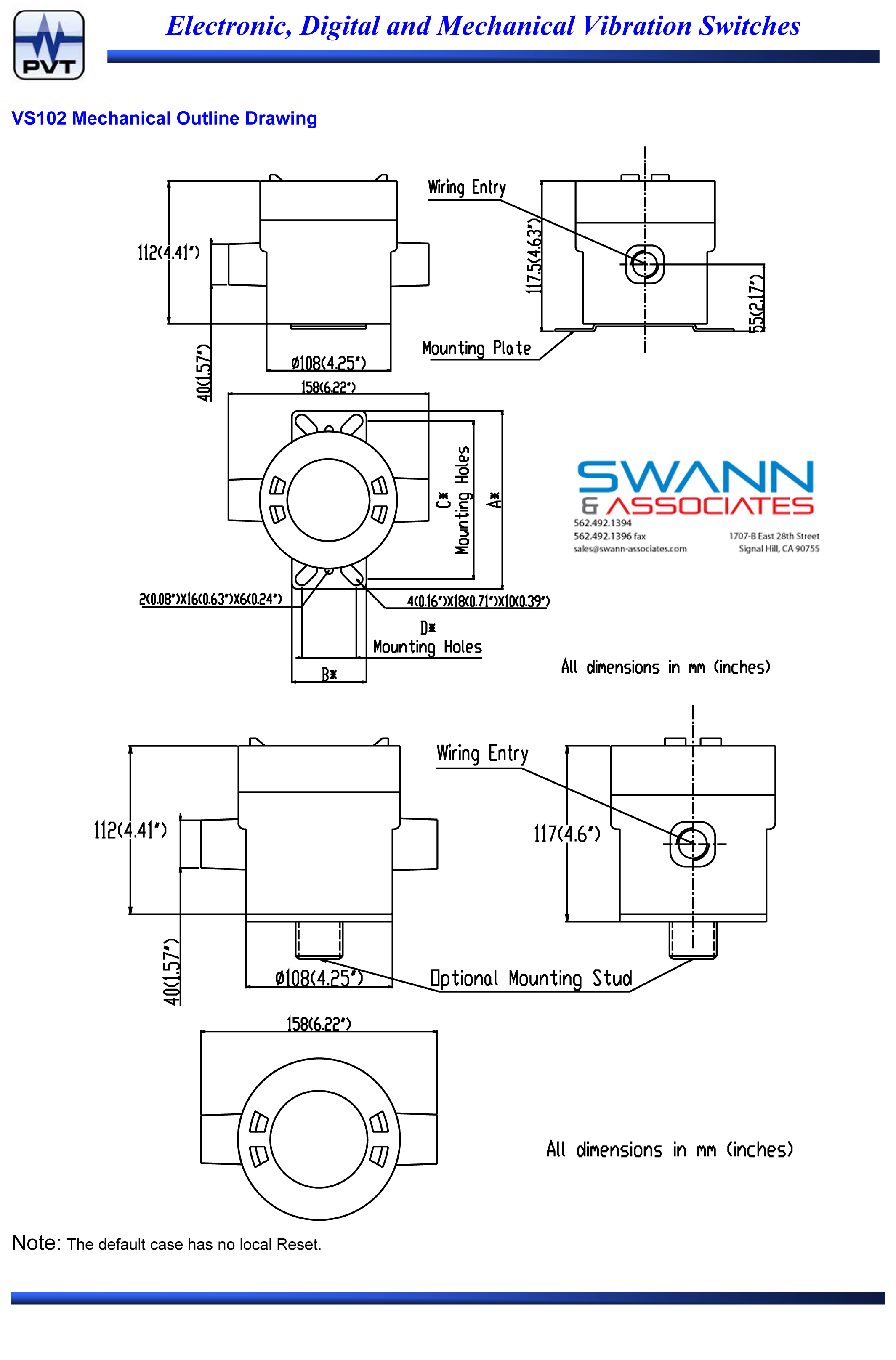

Dimensions: See attached drawing
Weight: 1.4kg (3 lbs)
