Specifications
Electrical |
| Sensitivity: |
|
|
4.0mV/mm/sec (100mV/g/in/sec) @ 25oC, ±10% |
| Frequency Response: |
|
|
2 -7,000Hz (±3dB) |
| Velocity Range: |
|
|
5.0V pk |
| Isolation: |
|
|
Fully isolated |
| Transverse Sensitivity: |
|
|
<5% oe axial |
| Power Requirement: |
|
|
3 - 10 mA constant current |
|
18 - 30VDC |
| Bias Voltage: |
|
|
10 - 14VDC |
| Resonance Frequency: |
|
|
15 kHz |
| Maximum Transmission Distance: |
|
|
300 meters (1,000 feet) |
Environmental and Physical |
| Temperature Range: |
|
|
-50oC to +150oC |
| Environmental Protection: |
|
IP67 |
| Weight: |
|
|
200 grams |
| Case Material: |
|
|
Stainless steel |
| Sealing: |
|
|
Hermetically sealed |
| Mounting: |
|
|
1/4-28UNF or M6x1 Screw |
| Installation Torque: |
|
|
29N x M |
Connection |
| MIL-C connector |
|
|
Hazardous Area Approvals: |
| ATEX: II 1 G, Ex ia IIC T4 |
| CSA: Class I, Div. 1, Group A,B,C,D and T4, |
| Class I, Zone 0, Ex ia IIC T4 |
| PCEC: Ex ia IIC T4 |
|
Order Information

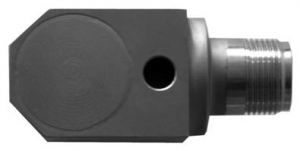

TM0796V-M
Side-exit velocity sensor with metric mounting screw
*TM0796V velocity sensor
*Mounting screw M6×1
TM0796V-E
Side-exit velocity sensor with English mounting screw
*TM0796V velocity sensor
*Mounting screw 1/4-28”
TM0796V-M-S
Side-exit velocity sensor with metric mounting screw
*TM0796V velocity sensor
*Mounting screw M6×1
*Hazardous Area Approvals
TM0796V-E-S
Side-exit velocity sensor with English mounting screw
*TM0796V velocity sensor
*Mounting screw 1/4-28”
*Hazardous Area Approvals |
