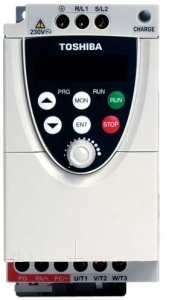

NC1S (240V, Single Phase Input) Drive
Hover over image to zoom
|
 Price: $235.00
Product ID : NC1-240-1
Manufacturer: Toshiba International Corp
Weight: 2.20 lbs
E-mail to a friend
Please complete this form.
All fields are required. Purchase |
Description
|
NC1 (240v / Single Phase) Standard Specifications
|
|||
| Range | 2001P-2022P | ||
| Input Voltage Rating | 230 V / Three Phase | ||
| KW Range | 0.1 - 2.2KW | ||
| HP Range | 1/8 - 3HP | ||
| Overload Rating |
150% for 60 seconds
|
||
| Input Voltage Tolerance | +10%, -15% | ||
| Input Frequency Rating | 50 / 60Hz | ||
| Input Frequency Tolerance | ±5% | ||
| Output Voltage Rating | 230V, Three Phase | ||
| Color | Munsel 5Y8 / 0.5 | ||
| Control System | Sinusoidal PWM Control | ||
| Output Voltage Range | Adjustable within a range of 100 to 120% of the corrected supply voltage (200V), nonadjustable to any voltage higher than the input voltage | ||
| Output Frequency Range | 0.5 - 200Hz, Default Setting: 0.5 - 80Hz, Max Frequency: 30 - 200Hz | ||
| Minimum Frequency Step | 0.1Hz: Operation Panel Setting, 0.2Hz: Analog Input (when the Max Frequency is 100Hz) | ||
| Frequency Accuracy | Digital Setting: within ±0.5% of the Max Frequency (-10 to +50°C) | ||
| Analog Setting: within ±1.0% of the Max Frequency (25°C ± 10°C ) | |||
| V/f Characteristics | V/f, Slip Frequency Compensation, Base Frequency, Base Frequency Voltage and Torque Boost (adjustable amount) |
||
| Frequency Setting Signal | Internal Pot on the Front Panel, External Frequency Signal (connectable to a volume with a rated impedance of 3-10 kΩ), VI Terminal (Input Impedance: 42 kΩ (Voltage: 0 - 10Vdc) or 250Ω (Current: 4 - 20 mAdc)). The frequency can be set arbitrarily using a two point setting. | ||
| Start-up & Jump Frequency | Adjustable within a range of 0.5 - 10Hz, up to 1 frequency can be adjusted together with its widths | ||
| PWM Carrier Frequency | Selectable from among 2, 4, 8, 12 and 16kHz (Standard Default Setting: 12kHz or 4kHz for models with a Built-In EMI Noise Filter) | ||
| Accel / Decel Time | Two selectable Accel / Decel Times adjustable from 0.1 to 3000 seconds | ||
| Retry Operation | Selectable number of retries (maximum 10 times) | ||
| If the protection function is activated, the retry function restarts on completion of a check of the main circuit. | |||
| Electric Control | Charging of Capacitor (Deceleration Time can be shortened by activating Forced Shortened Deceleration mode.) | ||
| Dynamic Braking | Braking Start Frequency: 0 to Max Frequency, Braking Rate: 0 to 100%, Braking Time: 0 to 20 seconds | ||
| Input Terminal Functions | Forward / Reverse Run Input Signal, Jog Run Input Signal, Standby Signal, Preset-Speed Operation Input Signal, Reset Input Signal, etc. | ||
| Output Terminal Functions | Frequency Lower Limit Output Signal, Frequency Upper Limit Output Signal, Low-Speed Detection Output Signal, Specified Speed Attainment Output Signal, etc., Open Collector, RY Output | ||
| Failure Detection Signal | 1 Form C contact, Rated: 250Vac, 2A, cosΦ = 0.4 | ||
| FM / AM Output | PWM Output: (1mAdc full-scale DC ammeter or 7.5Vdc full-scale DC ammeter / Rectifier-type AC Voltmeter, 225% Current Max 1mAdc, 7.5Vdc full-scale) | ||
| Protective Function | Stall Prevention, Current Limitation, Overcurrent, Output Short Circuit, Overvoltage, Overvoltage Limitation, Undervoltage, Ground Fault, Power Supply Phase Failure, Output Phase Failure Overload Protection by Electronic Thermal Function, Armature Overload at Start-up, Load-Side Overtorque at Start-up, Overheating Prevention, Detection of Analog Signal Break | ||
| Momentary Power Failure Protection | Auto-Restart Control after momentary power failure | ||
| Electronic Thermal Characteristics | Switching between Standard Motor / Constant- Torque VF Motor, Overload Trip, Overload Stall Selection | ||
| 4-Digit, 7-Segment LED | Frequency: Inverter Output Frequency Alarm: Stall Alarm "C," Overvoltage Alarm "P," Overload Alarm "L," Overheat Alarm "H." Status: Inverter Status (Frequency, Cause of Activation of Protective Function, Input / Output Voltage, Output Current, etc.) and Parameter Settings Free-Unit Display: Arbitrary Unit (e.g. Rotating Speed) Corresponding to Output Frequency |
||
| Indicator | Lamps indicating the inverter status by lighting, such as RUN lamp and PRG lamp | ||
| Use Environments | Indoor- Altitude: 1000 m (maximum), not exposed to direct sunlight, corrosive gas, explosive gas or vibration (less than 5.9m x 2) (10 to 55 Hz) | ||
| Ambient Temperature | -10 to +50˚Ca | ||
| Storage Temperature | -20 to +65˚C | ||
| Relative Humidity | 20 to 93% Non-Condensing | ||
