AS1 460V Low Voltage Heavy Duty

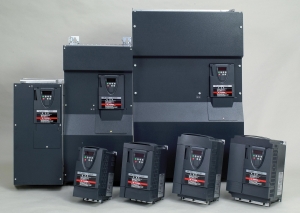

AS1 Low Voltage Heavy Duty Drive
Hover over image to zoom
Price: $0.00
Product ID : AS1-460V
Manufacturer: Toshiba International Corp
E-mail to a friend

Purchase

VFAS1-4007PL-HN [1HP] (+$541.00, +10.00 lbs)
VFAS1-4015PL-HN [2HP] (+$586.00, +10.00 lbs)
VFAS1-4022PL-HN [3HP] (+$632.00, +10.00 lbs)
VFAS1-4037PL-HN [5HP] (+$763.00, +15.00 lbs)
VFAS1-4055PL-HN [7.5HP] (+$930.00, +18.00 lbs)
VFAS1-4075PL-HN [10HP] (+$1,153.00, +26.00 lbs)
VFAS1-4110PL-HN [15HP] (+$1,488.00, +26.00 lbs)
VFAS1-4150PL-HN [20HP] (+$1,860.00, +53.00 lbs)
VFAS1-4185PL-HN [25HP] (+$2,306.00, +53.00 lbs)
VFAS1-4220PL-HN [30HP] (+$2,418.00, +66.00 lbs)
VFAS1-4300PL-HN [40HP] (+$2,917.00, +96.00 lbs)
VFAS1-4370PL-HN [50HP] (+$3,844.00, +96.00 lbs)
VFAS1-4450PL-HN [60HP] (+$4,641.00, +144.00 lbs)
VFAS1-4550PL-HN [75HP] (+$5,146.00, +144.00 lbs)
VFAS1-4750PL-HN [100HP] (+$6,324.00, +144.00 lbs)
VFAS1-4900PC-HN [125HP] (+$8,087.00, +220.00 lbs)
VFAS1-4110KPC-HN [150HP] (+$9,174.00, +270.00 lbs)
VFAS1-4132KPC-WN [200HP] (+$11,079.00, +270.00 lbs)
VFAS1-4160KPC-WN [250HP] (+$13,538.00, +405.00 lbs)
VFAS1-4200KPC-HN [300HP] (+$15,772.00, +508.00 lbs)
VFAS1-4220KPC-HN [350HP] (+$17,886.00, +508.00 lbs)
VFAS1-4280KPC-HN [450HP] (+$24,654.00, +508.00 lbs)

Description

AS1 460 V ASD POWER UNIT SPECIFICATIONS

HP
FLA
MODEL NUMBER
FRAME
Weight
Dimensions (H x W x D) inches
1
2.3
VFAS1-4007PL-HN
2
9
10
5.1
6
2
4.1
VFAS1-4015PL-HN
2
9
10
5.1
6
3
5.8
VFAS1-4022PL-HN
2
9
10
5.1
6
5
10.5
VFAS1-4037PL-HN
3
12
11.1
6.1
6.5
7.5
14.3
VFAS1-4055PL-HN
4
12
11.1
6.1
6.5
10
17.6
VFAS1-4075PL-HN
4
17
12.6
6.9
6.5
15
27.7
VFAS1-4110PL-HN
5A
22
12.6
8.3
7.5
20
33
VFAS1-4150PL-HN
5B
22
12.6
8.3
7.5
25
41
VFAS1-4185PL-HN
5B
36
16.7
9.1
7.5
30
48
VFAS1-4220PL-HN
6
36
16.7
9.1
7.5
40
66
VFAS1-4300PL-HN
7A
96
16.5
9.4
8.3
50
79
VFAS1-4370PL-HN
7A
124
21.7
9.4
9.5
60
94
VFAS1-4450PL-HN
8
124
21.7
9.4
9.5
75
116
VFAS1-4550PL-HN
8
186
24.8
12.6
11.4
100
160
VFAS1-4750PL-HN
8
186
24.8
12.6
11.4
125
179
VFAS1-4900PC-HN
9
186
24.8
12.6
11.4
150
215
VFAS1-4110KPC-HN
10
220
36.5
12.2
14.6
200
259
VFAS1-4132KPC-WN
11
270
40.5
13.8
14.6
250
314
VFAS1-4160KPC-WN
12
360
46.9
13
14.6
300
387
VFAS1-4200KPC-WN*
13
405
46.9
16.9
14.6
350
427
VFAS1-4220KPC-WN*
13
405
46.9
16.9
14.6
450
550
VFAS1-4280KPC-A1
13
360
37.4
23
14.6
550
671
VFAS1-4355KPC-A1
14
640
45.3
34.6
14.6
600
759
VFAS1-4400KPC-A1
14
640
45.3
34.6
14.6
700
941
VFAS1-4500KPC-A1
15
750
45.3
43.6
14.6


Features

The AS1 drive builds on Toshiba’s history of supplying powerful, reliable, and versatile drives.

We have combined our best drive features with the latest technologies, making the AS1 the new
contender in the PWM control drive market.

AS1 Industrial ClassSoftware

Schematics Available on Request

Advanced Design
The modular construction of the AS1
allows the unit to be installed into nearly
any application quickly and easily.
The laminated bus-plane technology
used in the AS1 means a reduced
component count, better reliability, and
easier service.


Simple Programming
Toshiba’s unified programming philosophy means that you can operate the AS1 drive with little or
no programming. At the same time, the AS1 maintains one of the most expansive parameter sets in
the industry, allowing you to fine-tune the drive for your specific application.


Tough Environment
The AS1 drive is designed to operate in extreme environments. It can operate in temperatures
up to 122°F without derating and can also be configured for use in temperatures of up to 140°F.
The AS1 is also designed to be used in a sealed cabinet design. This allows integrators to mount the AS1 heat-sink external to the
drive cabinet for simple and efficient cooling of the unit.


Improved Control
The AS1's new PID algorithm makes it easier than ever to dial in
your process control application. New parameters such as a delay
filter and a process control lower limit, and new functions such as
the AS1’s new Speed PID and easy positioning algorithms give
the drive expanded capabilities to take on difficult applications.

Powerful Performance
The AS1 offers both sensorless and feedback
vector control providing heavy duty performance.
Using its new Motor-Over-Flux Braking Technology,
the AS1 can provide as much as 30% of its rated power
for use in stopping a heavy or high inertia load without the
use of a dynamic brake resistor.

Smart Operation
Toshiba’s “My Function” programming set allows the
AS1 to operate as a simple PLC. Basic logic function
programming can now be done directly on the ASD.

Fault-Tracing
Issues with your application will no longer be a mystery
with AS1's fault-tracing algorithm. By accessing the fault-
tracing parameters, you can isolate exactly where the
trouble is located.

Easy Communications
The AS1 is designed to accommodate multiple stackable option cards that mount underneath
the unit’s keypad quickly and easily. In addition, the drive can accept two inputs from external
communication units via the two onboard RS485 communication ports.

Broad Compliance
The AS1 is certified by a broad range of governing and regulatory bodies making it a truly global
product.

AS1 Certs

Call for Intregrated enclosures, disconnects and filters.



Conduit Boxes

 MODEL NUMBER
 460 V HP RANGE
 FRAME
NEM1101Z
1 to 3
FRAME 2
NEM1102Z
5
FRAME 3
NEM1103Z
7.5 to 10
FRAME 4
NEM1104Z
15
FRAME 5A
NEM1105Z
20 to 25
FRAME 5B
NEM1106Z
30
FRAME 6
NEM1107Z
40 to 50
FRAME 7A
NEM1108Z
60 to 100
FRAME 8
NEM1109Z
125
FRAME 9
NEM1110Z
150
FRAME 10
NEM1111Z
200
FRAME 11
NEM1112Z
250
FRAME 12
NEM1113Z
300 to 450
FRAME13
NEM1115Z
550 to 600
FRAME 14
NEM1116Z
700
FRAME 15



Flange-Mount Kits

 MODEL NUMBER
 460 V HP RANGE
 FRAME
FOT001Z
1 to 3
FRAME 2
FOT002Z
5
FRAME 3
FOT003Z
7.5 to 10
FRAME 4
FOT004Z
15
FRAME 5A
FOT005Z
20 to 25
FRAME 5B
FOT006Z
30
FRAME 6
FOT007Z
40 to 50
FRAME 7A
FOT009Z
60 to 100
FRAME 8
FOT010Z
125
FRAME 9
FOT011Z
150
FRAME 10
FOT012Z
200
FRAME 11
FOT013Z
250
FRAME 12
FOT014Z
300 to 450
FRAME 13
FOT015Z
300 to 450
FRAME 13 WITH PB7
