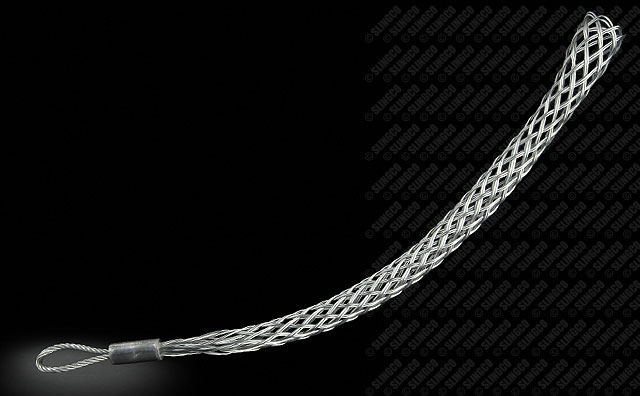

S-Type (Single eye)

Hover over image to zoom

Price: $66.22

Product ID : S-Type (Single eye)

Manufacturer: Slingco

Weight: 1.00 lbs

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

Purchase

The selected item is out of stock, please select a different item or combination

Description

Ideal for pulling medium to heavy loads; typical application - ‘standard pull’ of single or group of cables, where additional support is unnecessary, or if used in conjunction with other cable grips.

Data Sheet

Stainless Steel Imperial

Slingco part no.	Type	Size range	Lattice weave	Lattice length	Overall length	Approx breaking strength (lb)
ZCS1380	S1	0.25 - 0.50"	Single	9"	12"	1,344
ZCS1523	S2	0.50 - 0.75"	Single	14"	17"	1,792
ZCS1373	S3	0.75 - 1.00"	Single	16"	20"	4,480
ZCS1952	S4	1.00 - 1.50"	Single	18"	24"	6,272
ZCS1381	S5	1.50 - 2.00"	Double	21"	29"	8,960
ZCS1977	S6	2.00 - 2.50"	Double	24"	34"	8,960
ZCS1979	S7	2.50 - 3.50"	Double	27"	39"	10,752
ZCS1980	S8	3.50 - 4.50"	Double	27"	39"	12,544
ZCS1981	S9	4.50 - 5.50"	Double	27"	39"	12,544

Stainless Steel Metric

Slingco part no.	Reference	Size range (mm)	Lattice weave	Lattice length (mm)	Overall length (mm)	Approx breaking strength (kg)
ZCS1380	S1	10-13	Single	230	305	610
ZCS1523	S2	13-19	Single	355	430	813
ZCS1373	S3	19-25	Single	405	510	2,033
ZCS1952	S4	25-38	Single	455	610	2,846
ZCS1381	S5	38-50	Double	535	735	4,065
ZCS1977	S6	50-63	Double	610	865	4,065
ZCS1979	S7	63-89	Double	685	990	4,878
ZCS1980	S8	89-115	Double	685	990	5,691
ZCS1981	S9	115-140	Double	685	990	5,691
