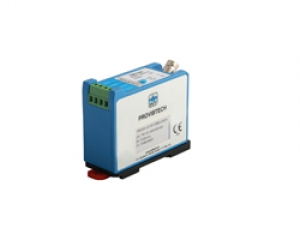

TR1101 Seismic Vibration Transmitter

Hover over image to zoom

Price: $596.25

Product ID : TR1101

Manufacturer: Provibtech

Weight: 1.00 lbs

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

Purchase

AXX: Full Scale

EXX: Sensor Type Calibration

GXX: Mount

Quantity

The selected item is out of stock, please select a different item or combination

Description

The TR1101 is a cost-effective solution for monitoring case
vibration on balance of plant machines. The TR1101
conditions the signal from an accelerometer or velocity
transducer and provides a 4-20mA output in acceleration,
velocity or displacement.

Features
* Measures machinery case vibration
* 4-20mA output in acceleration, velocity or displacement
* Buffered output up to 300 meters (1,000 feet)
* Compatible with other manufacturers’ sensors (accelerometer or velocity sensor)
* Aluminum casted (copper free) case with epoxy potting for better environmental protection and reliability
* Compact size

Data Sheet

Specifications
Electrical
Power Supply:
	22-30VDC, 100mA (Non isolated)

Frequency Response (±3dB):
	Acceleration: 2.0 - 10 KHz
	Velocity: 2 - 10 KHz (velocity sensor)
	Velocity: 10 - 5 KHz (accelerometer)
	Displacement: 10 - 3 KHz (velocity sensor)
	Acceleration (low frequency): 1.0 - 100Hz
	Velocity (low frequency): 1.0 - 100Hz (TM079VD)
	Displacement (low frequency): 1.0 - 100Hz (TM079VD)

Sensor Interface
Sensitivity:
	100mV/g nominal for accelerometer
	4.0mV/mm/sec (100mV/in/sec) nominal for velocity sensor
	40mV/mm/sec (1000mV/in/sec) nominal for velocity
	TM079VD or 4mV/um (100mV/mil) nominal for displacement TM079VD


Current Source:
	Nominal 4mA@24VDC

Connectors:
	GAP/Buf: gap and buffered output
	SIG: sensor signal
	COM: signal com
	4-20mA: 4-20mA output

Buffered Output:
	Original vibration, un-filtered
	Impedance: 100Ω
	Maximum cable distance: 300m (1,000ft)
	Sensitivity: same as the sensor
Overall Vibration:
	4-20mA, source
	Driving load resistance up to 750Ω
System Self-test:
	System OK: output 4-20mA
	System Not OK: output < 3.0mA

Physical
Height:	75mm (2.95”)
Weight:	1.0kg (2.0 lbs)

Environmental
Temperature:	Operation: -40oC to +70oC
	Storage: -40oC to +100oC

Humidity:	90% non-condensing
