UAB - Universal Amplifier / Digitiser

Hover over image to zoom

Price: Call for price

Product ID : UAB

Manufacturer: Mantracourt

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

Purchase

Call for price

Description

The UAB universal signal amplifier / digitiser is a very flexible digital signal conditioning system, in an OEM modular PCB format, for use with a wide range of sensors and transducers, including volts, amps, temperature, frequency, speed, load, force, pressure, torque, LVDT, RVDT and many more.

The digital architecture offers very easy one-pass calibration and fast setup.
This digital signal conditioning amplifier offers options of local or remote LCD display, isolated analogue outputs, latching relays or digital outputs for control or alarm functions.
The RS232 or RS485 options provide for digital communications (including setup) and can support label or ticket printers.

Wide range of Plug-In input modules providing transducer excitation

Fully flexible - any input module can be combined with any output module

Fully digital set-up and calibration using hand held plug-in display/keypad or comms

Optional local or remote LCD display and keypad

Simple one pass digital calibration for minimum set-up time on site

Fully isolated 4-20mA and 0-10V analog outputs

Setpoints and event handling using digital inputs and 2 x SPCO relays

High accuracy and high stability over a wide temperature range

RS232 or RS485 communications for setup, data transfer or label/ticket printing

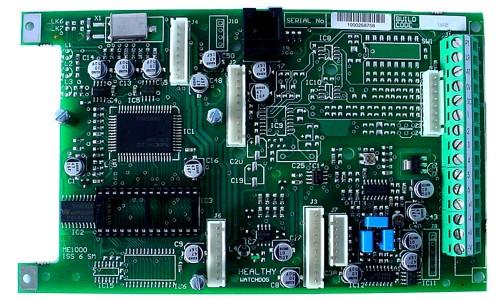

PCB (UAB shown in main photo) options include with case (D3) or without case (D2), DIN rail mounted (shown in photos on left)

Inputs
For input specifications refer to factory
Analogue Outputs
Drive	4-20mA up to 1Kohm and 0-10 volts up to 2mA
Accuracy	4-20mA + 0.15% of range, typical. 0-10V ±2% before calibration
Resolution	as for display up to 13 bits/4.5 digits. Settling time 350mS to within 1% of step change
Isolation	±130V RMS or DC max to analogue input or any other port
Power Supplies
LS1	110V-120V AC or 220/230V AC 50-60Hz 10W
LS3	9-32V DC 10W isolated
Data Retention/Protection
Retention	10 years for set up values, minimum of 100,000 write cycles
Protection of data and function(s)	Watchdog timer giving repeat auto resets. Impending power detection and hold off. Keypad security and time out
Other Points & Accessories
2 set points	Output through 5A 240V AC SPCO Relays, with a latching option
Communications Port	For data transfer or print via:-
RS485	Enabling up to 25 units to be multi dropped
RS232	For 1 to 1 connection and standard printer drive
Printer Operation	By closure of volt free contact
Baud Rates	300, 600, 1200, 2400, 4800, 9600 (19200 MANTRABUS only)
Die Cast Rates	Sealed to IP65 with external dimensions of 220 x 120 x 80mm max
Stainless Steel Case	Sealed to IP65, with external dimensions of 224 x 160 x 90mm
PCB Only (Eurocard) (LCB)	100 x 160 X 57mm for rack or customers enclosure
Environmental
Storage Temperature	-20 to +70°C
Operating Temperature	-10 to 50°C
Relative Humidity	95% maximum non condensing
CE Environmental Approvals	European EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC
