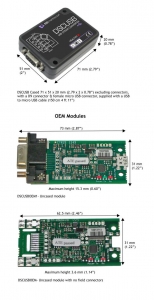

Strain Gauge to USB Convertor (DSCUSB)

Click to enlarge

Price: $255.00

Product ID : DSCUSB

Manufacturer: Mantracourt

Weight: 0.02 lbs

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

Purchase

The selected item is out of stock, please select a different item or combination

Description

The DSCUSB is a compact, high performance digital signal conditioner with USB connectivity aimed at applications requiring high accuracy measurement. Converts a strain gauge sensor input to a digital USB serial output. The converter is enclosed within a rugged metal case, making the device suitable for all indoor environments.

Ideal for all strain gauge bridge based sensors including strain, weight, load, force, torque, pressure & displacement, the device simply plugs into your PC where data can be acquired and manipulated by accompanying software.

Typical applications for the DSCUSB will be those requiring simple sensor connectivity in desk top settings such as test & measurement, R&D and laboratory environments. No additional power supply is required as the power is drawn from the USB bus. Although ideal for one-to-one interface, the device can connect with multiple sensors with the use of a suitable hub. Available in ASCII protocol.

Compact USB load cell signal converter for easy USB strain gauge and load cell acquisition

Compact desk format powered from USB

Ideal for portable test applications

Strain gauge data acquisition for all bridge input sensors (weight, pressure, force, torque & more)

High resolution 1 part in 400,000 (18bit)

High speed to 500 updates per second

Ability to communicate with multiple USB sensors

Converts a conventional load cell to a USB load cell

Hardware Specifications
Parameter	Min	Typical	Max	Units	Notes
Supply Voltage Range	4.35	5	5.25	Volts
Average Operational Current (normal mode)		70	80	mA	Note 1
Operating Temperature Range	-40		85	Deg C
Storage Temperature Range	-40		85	Deg C
Humidity	0		95	%RH
Note: 1. When connected to a 350 Ohm Load Cell.
Bridge Measurement
Measurement	Min	Typical	Max	Units	Notes
Strain Gauge Excitation System			4 wire
Strain Gauge Excitation Voltage	4.5	5	5.25	VDC
Strain Gauge Drive Capability			5000	Ohms
Strain Gauge Sensitivity	-3		3	mV/V
Offset Temperature Stability		5	10	ppm/C
Gain Temperature Stability		30	50	ppm/C
Offset Stability with Time		35	160	ppm of FR (1)
Gain Stability with Time			300	ppm of FR(2)
Non Linearity before Linearization		5	25	ppm of FR
Internal Resolution		16 Million		Counts/Divs
Resolution @ 1Hz Readings (Noise Stable) over 100s		66,000		Counts/Divs
Resolution @ 10Hz Readings (Noise Stable) over 100s		40,000		Counts/Divs
Resolution @ 100Hz Readings (Noise Stable) over 100s		10,000		Counts/Divs
Signal Filter	Dynamic recursive type user programmable
Communications (USB)
The load cell to USB adaptor will communicate as a simple serial device rather than a ‘native’ USB device. Once the device is plugged into a PC and the supplied drivers are installed, the device will appear as a Virtual Serial Port to the PC. Standard Modbus drivers, configurations and libraries can be used with this device. Mantracourt will also supply a driver for its own ‘Instrument Explorer’ software. Because each device, when plugged into a PC, creates an additional serial port, the total number of devices that can be attached to the PC may be limited by the communication software’s ability to utilise these multiple ports i.e. an existing Modbus communication program may only support COM1 to COM4.
Support Modules
Instrument Explorer Software
Environmental
Storage Temperature	- 40 to + 85ºC
Operating Temperature	- 40 to + 85ºC
Relative Humidity	95% maximum non condensing
CE Environmental Approvals	European EMC Directive 2004/108/EC
