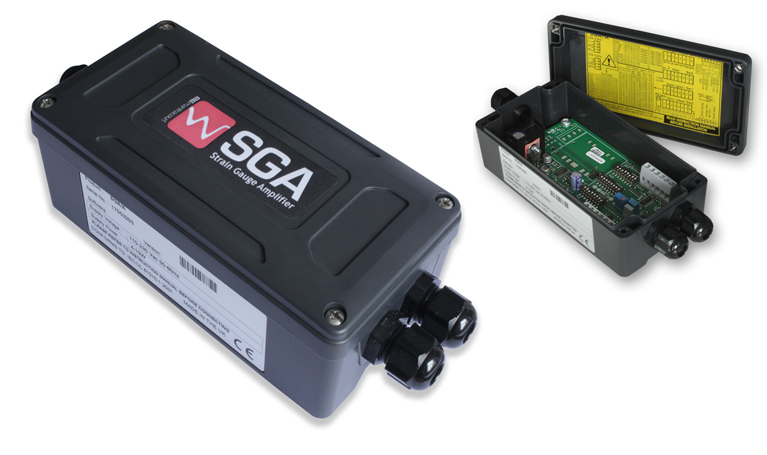

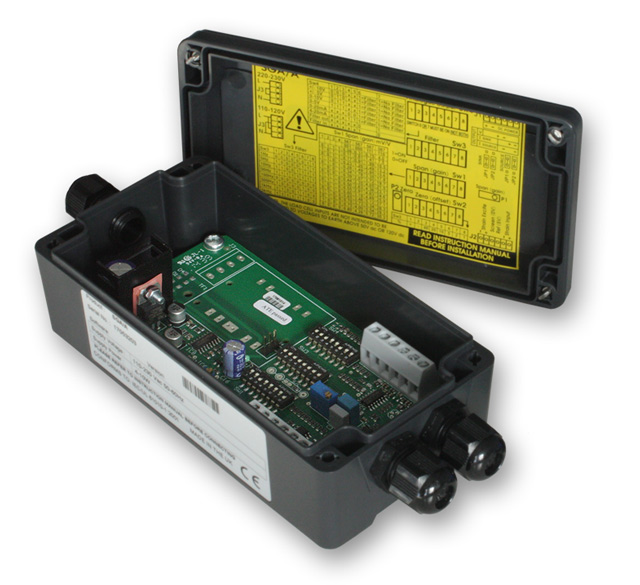

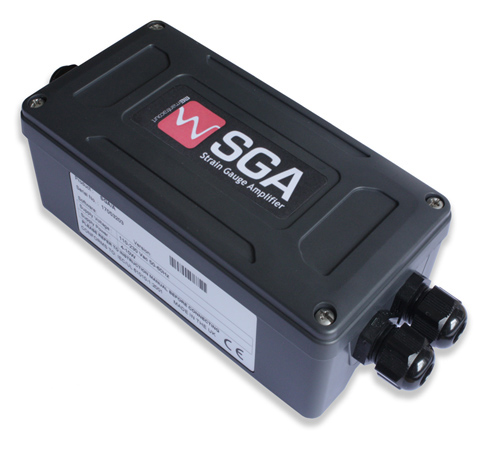

SGA Strain Gauge or Load Cell Amplifier / Signal Conditioner

Hover over image to zoom

Price: $330.00

Product ID : SGA/A & SGA/D

Manufacturer: Mantracourt

Weight: 1.00 lbs

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

Purchase

The selected item is out of stock, please select a different item or combination

Description

The SGA Strain Gauge or Load Cell Amplifier is a high performance signal conditioner for single or multiple strain gauge bridge sensors (load, force, pressure, torque), offering a wide bandwidth and a wide input signal range.
The device can be powered from AC or DC supplies providing excitation for up to 4 x 350 ohm strain gauge bridges.
The conditioned output signal can be selected from 0-20mA, 4-20mA, 0-10V, 0-5V, ±5V or ±10V.
Options include. Isolated DC supply, DIN rail mount and OEM module.

Waterproof IP65 NEMA4 bulkhead mountable case
Available with AC or DC power supply options
Robust and Fully CE compliant

Strain gauge amplifier for signal conditioning of load cells
Bridge excitation of 10V DC with drive for 4 load cells
Selectable bandwidth of 1 to 5000 Hz for test & measurement applications
Selectable sensitivity from 0.1 to 30 mV/V using switches and fine trim potentiometer
Switch selectable offset ±70% FS using switches and fine trim potentiometer
User selectable analogue output in standard voltage or current format
