Price: $348.00
Product ID : PSD
Manufacturer: Mantracourt
Weight: 1.20 lbs
E-mail to a friend



  • Portable digital display for use as a load cell indicator or strain gauge indicator
  • Easy to carry - weighing only 250 grams
  • Waterproof IP65 NEMA4 battery powered
  • 7 digit LCD display, with battery, peak, trough, net, overload and shunt cal indication
  • Battery life of 450 hrs in power save mode
  • Tactile keyboard, with on/off, range select, peak/valley hold, and gross/net controls
  • Microprocessor based, allowing single pass calibration facility (direct mV/V)
  • Dual range for values such as Kg and lb
  • TEDS enabled for automatic sensor calibration (IEEE1451 - template 33)

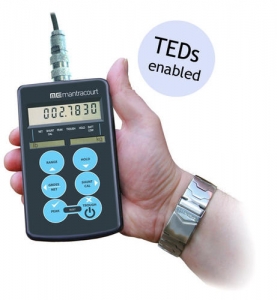

  • PSD is shown in main photo. The PSD232 RS232 output option is shown on Mantracourt's website. The PSD indicators have an optional black leather carry case with clear viewing window and shoulder strap for both versions of PSD

The PSD portable strain gauge indicator or load cell display combines extremely high resolution and low power with the convenience of a hand held display and keypad.

The 7 digit LCD display has peak and valley hold facilities. Calibration modes are auto, mv/v table or digital gain and offset. The display is TEDS enabled for automatic sensor calibration. RS232 output can be chosen as an option allowing connection to any RS232 interface whether it’s a PC or simple data logger. See the PSD232 for more details.

The load cell display / strain gauge indicator is powered by two AA batteries providing long life using innovative power saving features. The enclosure is sealed to IP65 / NEMA 4 and a carry case option is available.

For use as a load cell indicator, strain gauge display, force display, weight indicator, weight monitor or load indicator able to drive up to 4 x strain gauge bridges.

Environmentally sealed to IP65 / NEMA 4 with 1 year Warranty
