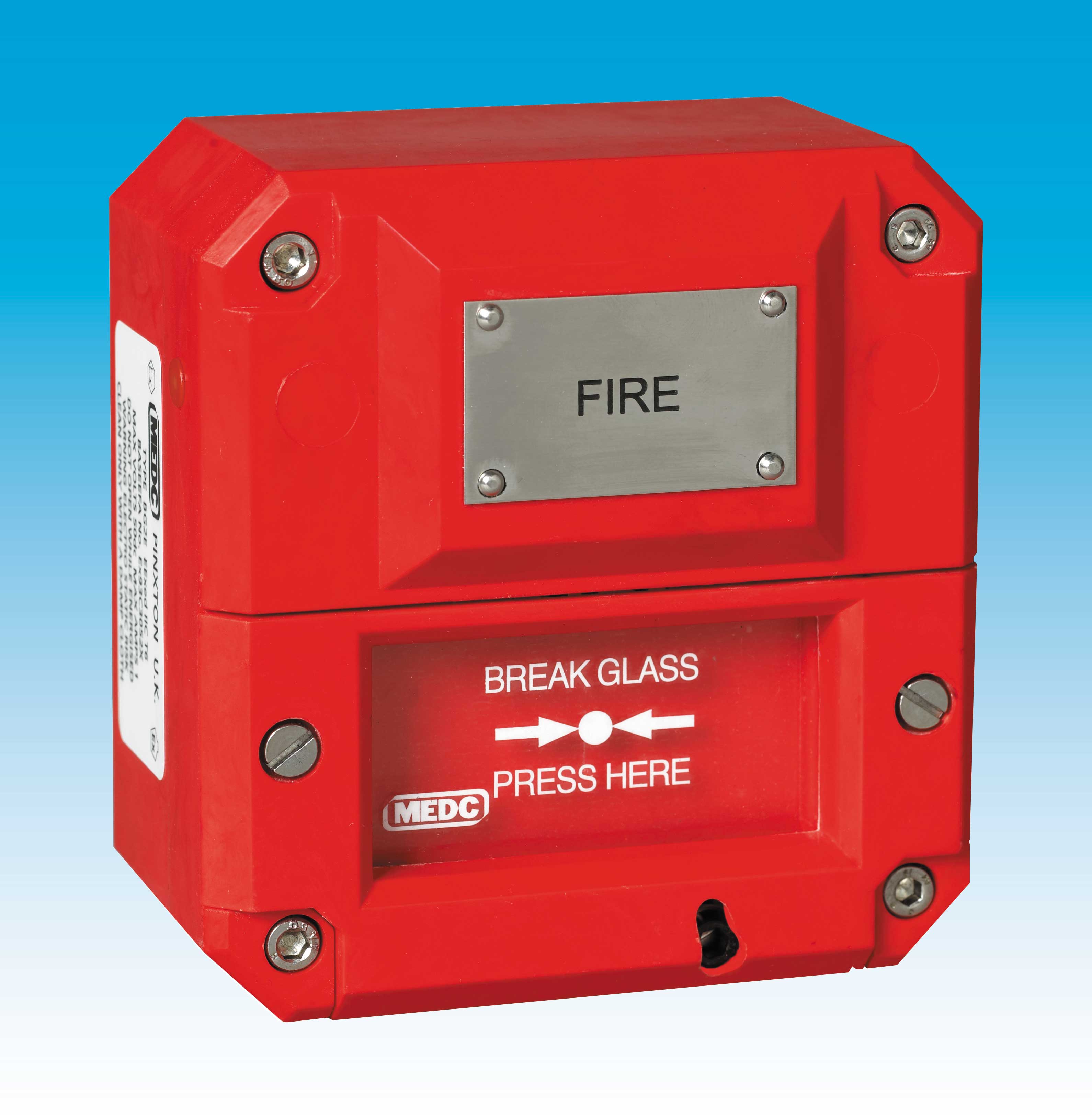

BG- Manual Call Point (BGUL2C5C1ADCE6R)

Data Sheet

*Polyester enclosure – light, strong and not subject to corrosion.

**2 models:

Breakglass.

Pushbutton.

**4 basic versions available:

1.    Explosion protected EExe (ATEX or Chinese [CQST], Or Brazilian [Inmetro]),

2.    Explosion protected EExi (ATEX, GOST ‘R’, GOST ‘K’, Chinese (CQST),   Brazilian [Inmetro] or CSA)

3.    Explosion protected:

Class I, Div. 2, Groups A-D

Class II, Div. 2, Groups F & G (PB only)

Class I, Zone 2

4.    Weatherproof & Dust-tight/UL ordinary locations.

*In line and end of line resistors and/or zener diodes can be fitted.

*Variety of colours available.

*Up to 9 terminals available.

*Lift flap available for extra protection against inadvertent operation.

*Optional LED – this indicates that the unit has been operated – useful for testing

  purposes.

*Earth continuity option for metal glands.

*1 or 2 changeover switches.

*Captive cover screws.

Breakglass Model

-No hammer required – the glass is covered by a membrane thus protecting the operator from glass fragments.

-A plastic ‘Break glass’ or deformable operating element is available to replace the break glass*.

-Once the flexible element is pressed it bends but will not break. The unit is reset by repositioning the element. All other functions remain the same.

*Complies with the British Standard for call points.

*Key operated test facility – simple but secure.

*Breakglass hammer available.

Note: Deformable operating element does not comply with BS5839 Part 2.

Pushbutton Model

*Stayput as standard or self reset available.

*Lift Flap as standard. (Not turn and push model).
