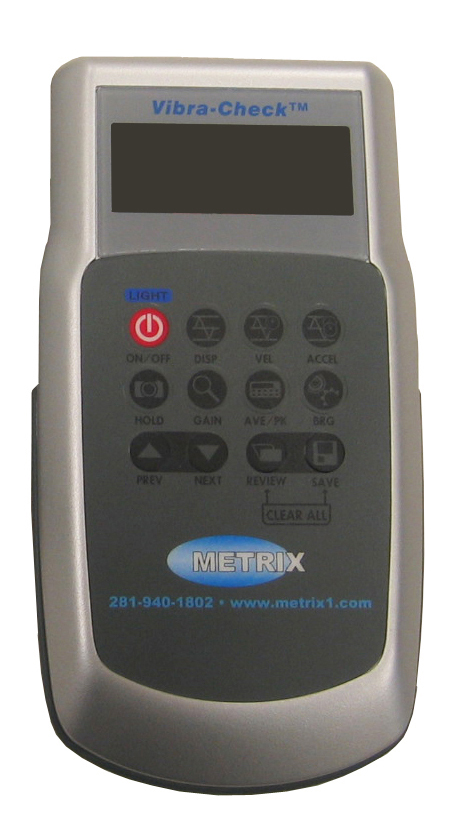

VM3800 Portable Vibration Meter

Hover over image to zoom

Price: $3,379.00

Product ID : VM3800

Manufacturer: Metrix Instrument Company

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

Purchase

The selected item is out of stock, please select a different item or combination

Description

The economical and compact VIBRA-CHECK™ Vibration Meter is anideal tool for obtaining spot measurements of machinery vibration. All three useful measurements are possible. Displacement, velocity, and acceleration modes allow a user to perform basic vibration analysis. The robust high temperature accelerometer sensor has a removable magnetic mounting base for attachment of a stinger. The sensor is internally protected against thermal shock, electrical noise and amplitude overload. The handy carrying pouch keeps the meter out of the way, yet ready for use. When it’s time to take a reading, simply place the accelerometer on your machine and tilt the pouch up to view display.

Data Sheet

Specifications

Function:	Portable hand-held vibration indicator. Reads vibration level on LCD display.
Units:	User-selectable English/Metric units.
Displacement:	0-78.7 mil or 0-1999 um, p-p (10 to 1000 Hz)
Velocity:	0-7.87 in/sec or 0-199.9 mm/s, 0-pk, 10-1000 Hz, ISO 2954
Acceleration:	0-19.99 g, rms, 10 Hz HP
Temperature Rating:	-10 degree C to +60 degree C
Accuracy:	5% (10 - 10 kHz)
Battery Indicator:	Low, 25%, 50%, 75%, Full
Sensor Indicator:	Bias, Normal/Open/Short Graphical Indicator
Back Light:	LED back light, auto off five minutes after pressing any key
Sensor Sensitivity:	100 mVg + 30% adjustable
Housing Rating:	IP 65, with EMI protection
Power Supply:	9V alkaline battery (approx. 30 hours operation)
Display:	120 x 32 graphic mode LCD
Dimensions:	7.1 x 3.6 x 1.2 in (180 x 92 x 32 mm)
Weight:	10.6 oz (300 grams), including battery

Features Exclusive to VM3800
Bearing Condition:	0-7.87 in/sec or 0-199.9 mm/s, 0-pk, 500 Hz - 2 kHz
Hold Function:	Freezes the display
Average Function:	Displays the average value of the last 10 points
Pk Hold Function:	Displays the maximum value
Gain:	x 10, multiplier increases the precision by one (1) decimal place
Memory:	Up to 1000 points
Review Function:	Recall and display saved data
