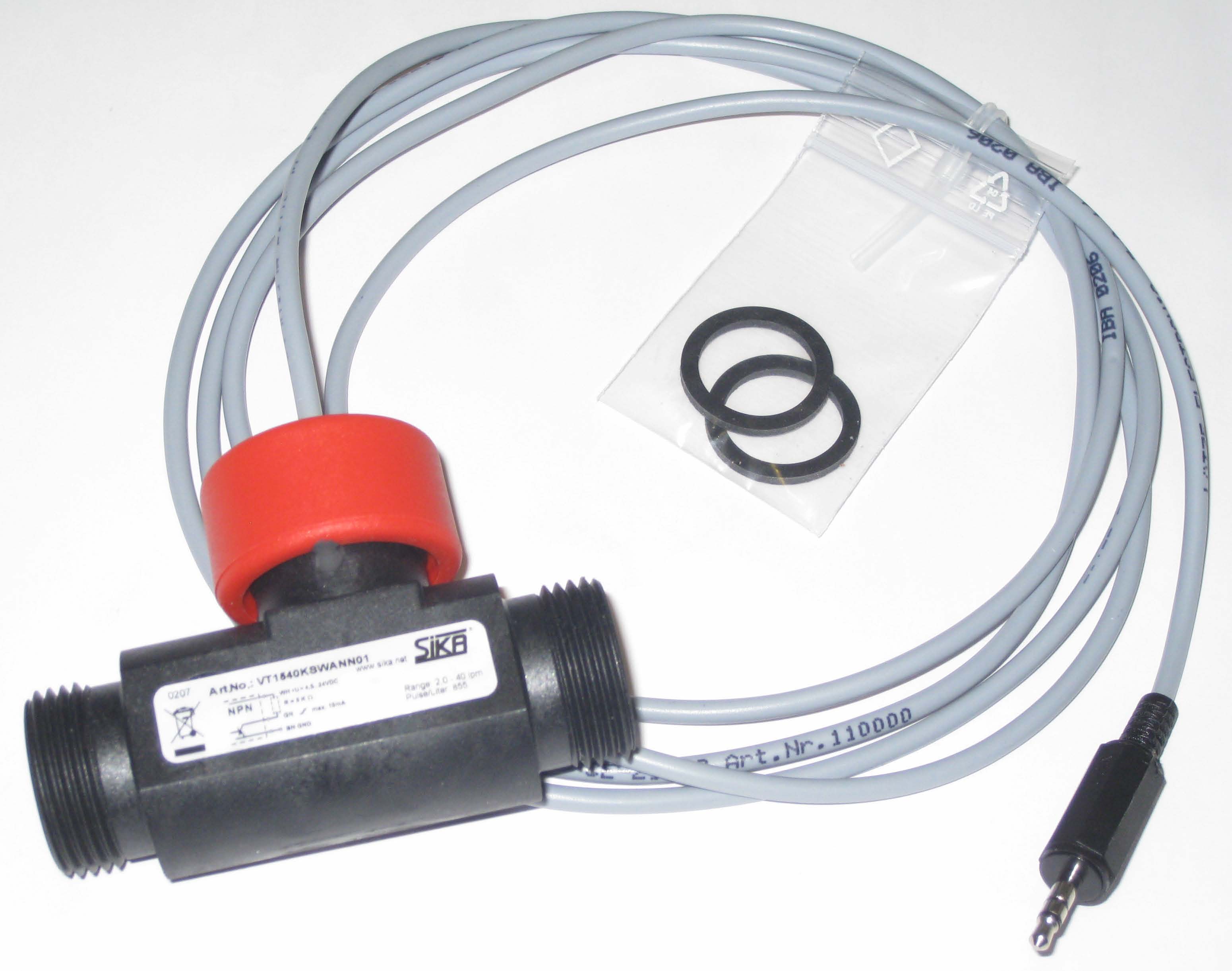

Sika Axial Turbine Flow Sensor VTH 15

The turbine flow sensor of the Turbotron series is a transducer for volume flow recognition or for fluid dosing use. It has an almost unlimited application through its exceptionally compact design, its very wide measurement range and its convincing measurement accuracy.

The liquid flowing into the Turbotron is divided by the blade shroud in four split beams. These hit the rotor from four directions and put it in motion. The uniform loading of bearing from four sides causes the forces to cancel themselves out for the most part and wear is reduced to a minimum.

The extremely hard bearing materials, sapphire and hard metal, ensure in addition an extraordinary life expectancy.

The rotor speed is transmitted to an electrical pulse signal (frequency):

The VTH are equipped with rotors which are fitted with magnets. A Hall effect sensor recognizes the rotation of the rotor.

Sold by Sika as VT15-40-K5-H-N-P-0-A, over 100 pieces in stock
