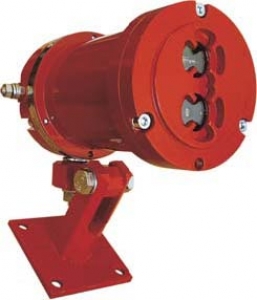

UV Flame Detector

ESP Safety's Model UV flame detector is designed to detect and alarm for
conditions of flame and fire within it’s field vision. One a condition is
detected it would transfer alarm signals to receiving-and-control devices
(RCD) of control and operations rooms, fire alarms, and burglar/fire alarm
systems.

Click here for Spec Sheet

The model IPES UV with integrated ultraviolet sensors is allowed to
monitor fires in UV spectral range with a 90 degree field of view.
Optical filters and design of receivers determine the range of maximum
spectral sensitivity of the detector for UV radiation – 4,2…4,6 micron. The
sensors and optical filters are chosen so that IPES is maximally sensitive
to the radiation produced by fire provided flare light from incandescent
lamps, sunlight and hot objects is maximally suppressed. Based on
operational wavelength and distances, the coefficient of extinction for air is
negligible.

In the process of operation, IPES generate dry relay contacts, informational
analog signals 4-20 mA and standard communication channel RS-485
under protocol MODBUS RTU. IPES is made in an explosion-proof
modification for use in hazardous (classified) locations; the type of
implosion protection is “Explosion-proof”, Class I, Division 1, Group B, C&
D, T4.
