SSTG-3 Conduit Hub

SSTG-3 Conduit Hub
Hover over image to zoom

More images

Click to enlarge
Price: $30.00
Product ID : SSTG-3
Manufacturer: Crouse Hinds
Weight: 0.80 lbs
E-mail to a friend

Purchase

Description

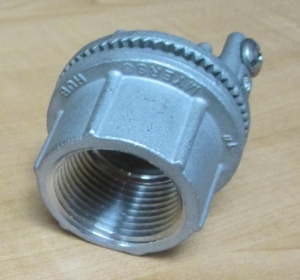

  • Cooper Crouse-Hinds-Myers Scru-tite ground Hub. 1 inch NPT, type 316 stainless steel conduit hub.
  • Listed for use with type 2, 3, 3R, 4, 4X, 12 enclosures Water, rain, drip and dust-tight.
  • For steel or aluminum conduit
  • 939K grounding and bonding equipment

Certifications

NEC/CEC:

Class I, Division 2

Class II, Division 1 & 2

Class III, Division 1 & 2

Class I, Zone 1, AEx e II

Class I, Zone 1, Ex e II

UL Listed - UL Standard 514B

CSA Certified - Certified by UL to CSA Standard C22.2 No. 18

NEMA Type 2, 3, 3R, 4, 4X, 12 (std & ground hub)

IEC:

ATEX Certified to EN60079-0:2009, EN60079-7:2007 and EN60079-14 Standards

ATEX Certified ITS12ATEX47591X II 2G Ex e IIC Gb Ta (-15°C to120°C)

IECEx Certified IECEX ETL 12.0009X to IEC 60079-0:2007-10, Edition 5 and IEC 60079-7:2006-07, Edition 4

IECEx-Ex e II Gb Ta (-15°C to 120°C)

IP66

Material:

Nut: Stainless (316)

Body: Stainless (316)

Insuliner: Lexan

O-Ring Gasket: Viton

Ground Screw: Stainless Steel 8-32
