5mm TM0105 Probes (7200 Series)

Hover over image to zoom

More images

Click to enlarge

Price: $233.75

Product ID : 5mm TM0105-7200series

Manufacturer: Provibtech

Weight: 1.00 lbs

E-mail to a friend

Please complete this form.
All fields are required.

Your name

Your email address

Your friend's name

Your friend's email

Purchase

Probe Type

1.0m Armor

NO Armor
Armor (+$32.00)

Unthreaded Length(Imperial)

Unthreaded Length (Metric)

Case Length (Imperial) (max=9.5in)

Case Length (Metric) (Max=250mm)

Total Length

Connector Type

Intended order specs (used to check part number orderd)

Quantity

The selected item is out of stock, please select a different item or combination

Description

The TM0105 (5mm) probes are
designed for long life cycles and are suitable for harsh
environments. ProvibTech realizes one of the most
significant problems in proximity probe installations are
ground loops and loss of isolation due to damaged cable
jackets. ProvibTech’s custom rugged cable jacket prevents
the probe cable from breaking and tearing and is highly
resistive to corrosive environments.

Data Sheet

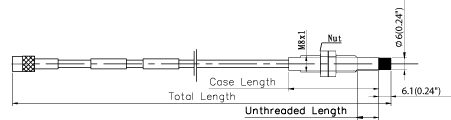

TM0105 (7200 Series)	-XXXXX	-XX	-XX	-XX	-XX
7200 5mm Probe	Probe Type	Unthreaded Length	Case Length	Total Length	Connector Type
1/4”-28UNF; without armor	-21500	Standard: 00 (0.0 in) Increment: 05 (0.5 in) Maximum: Case length-1.0 in	Standard: 20 (2.0 in) Increment: 05 (0.5 in) Minimum: 10 (1.0 in) Maximum: 95 (9.5 in)	05 (0.5m); 10(1.0m); 50(5.0m); 90(9.0m)	00 (none) 02 (yes)
1/4”-28UNF; with armor	-21501
M8×1; without armor	-22813	Standard: 00 (0 mm)Increment: 01 (10 mm) Maximum: Case length-20mm	Standard:05 (50 mm) Increment:01(10mm) Minimum:02(20mm) Maximum:25(250mm)
M8×1; with armor	-22812
