11mm Proximity Probe TM0110 (7200)

11mm Proximity Probe TM0110 (7200)
Hover over image to zoom
Price: $0.00
Product ID : TM0110-7200
Manufacturer: Provibtech
E-mail to a friend

Purchase

NO Armor
Armor (+$32.00)

Description

The TM0110 probe is an 11mm probe designed for harsh
environments. The rugged cable jacket helps prevent the
probe cable from breaking and tearing, as well as, being
highly resistive to corrosive environments. The TM0110
proximity probe and extension cable are equipped with a
standard protective rubber boot, which covers the
connectors and prevents oil and dirt penetration.

The standard cable lengths for the TM0110 are 0.5m and
1.0m. Additional lengths of 5.0m and 9.0m are available with
an integrated probe and extension cable connected together
equaling one part.

The probe may be selected in either English or metric units,
as well as, reverse mounting options.

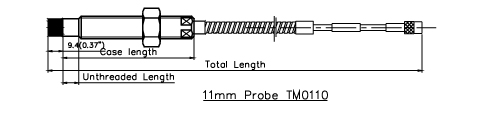

TM0110 -xxxxx -xx -xx -xx -xx
Standard 11mm Probe  Probe Type  Unthreaded Length  Case Length  Total Length  Connector Type
1/2”-20UNF; without armor  -19048 Standard: 00 (0.0 in) Increment: 05 (0.5 in) Maximum: Case length-8.0 in  Standard: 30 (3.0 in) Increment: 05 (0.5 in) Minimum: 15 (1.5 in) Maximum: 95 (9.5 in)  05 (0.5m) 10 (1.0m) 50 (5.0m) 90 (9.0m)  00 (none) 02 (yes)
1/2”-20UNF; with armor  -24798
M14×1.5; without armor  -26179 Standard: 00 (0 mm) Increment: 01 (10 mm) Maximum: Case length-210 mm  Standard: 05 (50 mm) Increment: 01 (10 mm) Minimum: 03 (30 mm) Maximum: 25 (250 mm)
M14×1.5; with armor  -26180
