Home > Proximity Products & Probes > Probes > 25mm Probes
Print

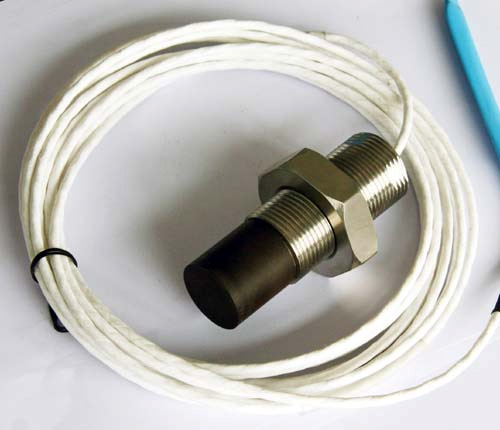

25mm TM0120 Integral Proximity Probe

25mm TM0120 Integral Proximity Probe
Hover over image to zoom
Price: Call for price
Product ID : 25mm TM0120
Weight: 1.00 lbs
Delicious Bookmark this on Delicious
E-mail to a friend

Purchase

Call for price

Description

The 25mm probe has up to 12mm (470mil) linear
range. The probe is designed for measuring differential
expansion. The TM0120 integrates the probe,
extension cable and the driver into one unit. This
integral proximity probe is designed for easy field
installation.


The TM0120 probe comes in lengths of 1m, 5m and
9m standard cable (2 conductor shielded cable).





25mm Integral Probe Standard Body
Probe Type
Unthreaded Length
Case Length
Total Length
1.25-12 UNF;Without Armor -02 Standard: 00(0.0in); Increment: 01(0.1in); Maximum: Case length- 1.0in Standard: 30 (3.0in); Increment: 01(0.1in); Minimum: 20(2.0in); Maximum: 95 (9.5in) 10 (1.0m); 50 (5.0m); 90 (9.0m)
1.25-12 UNF; with armor -03
M30x2; without armor -00 Standard: 00(00mm); Increment: 01(10mm); Maximum: Case length- 20mm Standard: 07(70mm); Increment:01 (10mm); Minimum: 05(50mm); Maximum: 25 (250mm)
M30x2; with armor -01
